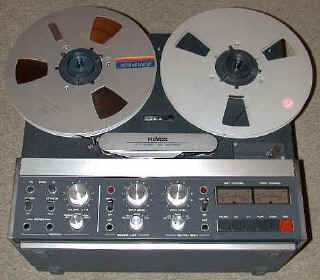

B77 Specification









Tape transport mechanism:

3 motor tape drive; 2 AC driven spooling motors; 1 AC driven capstan motor, electronically regulated



Tape speeds:

3.75 ips and 7.5 ips, electronic change-over, tolerance from nominal +-0.2%

With optional vari-speed speed variable from 2.5.....11 ips



Wow and flutter:

(as per DIN 45507)

At 3.75 ips <0.1%, at 7.5 ips <0.08%



Tape slip:

Maximum 0.2%



Reel size:

Up to 10.5 diameter (minimum hub diameter 2.36)

Tape tension switchable for small hub diameters



Winding time:

Approximately 135 seconds for 3,600 ft of tape



Tape transport control:

Integrated control logic with tape motion sensor provides for any desired transition between different operating modes. Contactless electronic switching of all motors. Remote control of all transport functions and electronic timer operation are possible



Equalization:

(as per NAB)

3.75 ips: 90 microsec/3180 microsec

7.5 ips: 50 microsec/3180 microsec



Frequency response:

(measured via tape at -20 VU)

3.75 ips 30Hz.....16kHz +2/-3dB

50Hz.....10kHz +-1.5dB

7.5 ips 30Hz.....20kHz +2/-3dB

50Hz.....15kHz +-1.5dB



Peak recording level:

514 nWb/m corresponds to 6dB above 0VU



Level metering:

VU meter as per ASA standard, with LED peak level indicators



Distortion:

3.75 ips at 0VU <1%, at 0VU+6dB <2.5%

7.5 ips at 0VU <0.6%, at 0VU+6dB <1.5%



Signal to noise ratio:

(weighted as per ASA-A)

Half track

3.75 ips >64dB

7.5 ips >67dB

 Quarter track

3.75 ips >60dB

7.5 ips >63dB



Crosstalk:

At 1kHz stereo >45dB, mono >60dB



Erase depth:

At 7.5 ips >75dB



Inputs per channel:

MIC LO 0.15mV/2k2ohms for low impedance microphones

MIC HI 2.8mV/110kohms for high impedance microphones

RADIO 2.8mV/20kohms

AUX 40mV/220kohms



Outputs per channel:

(Level at 6dB above 0VU)

OUTPUT 1.55V/390ohms adjustable with preset

RADIO 1.55V/4k7ohms adjustable with preset

PHONES 5.6V/220ohms adjustable with control



Connectors for:

Remote control of tape transport

Remote control of variable tape speed

Slide projector or crossfade unit (electronics optional)



Components:

11 ICs, 1 opto-coupler, 4 triacs, 60 transistors, 33 diodes, 5 LEDs, 2 full wave rectifiers, 3 relays



Electric current supply:

100.....240V ~ +-10%

Voltage selector for 100V, 120V, 140V, 200V, 220V, 240V

50.....60Hz without conversion, maximum power 80 watts

Main fuse 120V 1A slow-blow, 240V 0.5A slow-blow



Weight:

Approximately 17kg



Dimensions:

452 x 414 x 207 mm (W x H x D)

Clearance required for 10.5 reels height 464mm, width 538mm



The B77 head block
