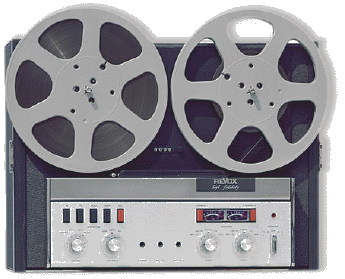

A77 Specification









Tape transport:

3 motor deck, Electronically governed capstan motor with electronic speed change



Wow & Flutter:

0.08% max at  7½ ips and 0.1% at 3¾ ips



Tape slippage:

less than 0.2%



Max. spool diameter:

10½"



Frequency response:

30Hz - 20kHz at  7½ ips (+2 / -3 dB) and 30Hz - 16kHz at 3¾ ips (+2 / -3 dB)



Distortion at full modulation:

2% at 7½ ips and 3% at 3¾ ips (maximum)



Equalization:

Record: NAB, Playback: NAB and IEC (switchable)



Signal-to-noise ratio:

Better than 58 dB at 7½ ips and 56 dB at 3¾ ips



Crosstalk:

Mono better than 60 dB, Stereo better than 45 dB



Oscillator frequency:

120 kHz, push-pull



Inputs per channel:

Mic (switchable HI/LOW), Radio (2 mV / 33 k-ohm), Auxilliary (40 mV / 1 meg-ohm)



Outputs per channel:

Line (max. 2.5 V / 600 ohms), Radio (max. 1.2 V / 2.5 Kohms)



Output power:

2 x 10 watt plug-in optional amplifier boards



Output impedance:

4 - 16 ohms



Size:

14½ x 16¼ x 7" (38.8 x 41.3 x 17.8 cm)



Weight:

approx. 34 lbs (15.5 kg)
